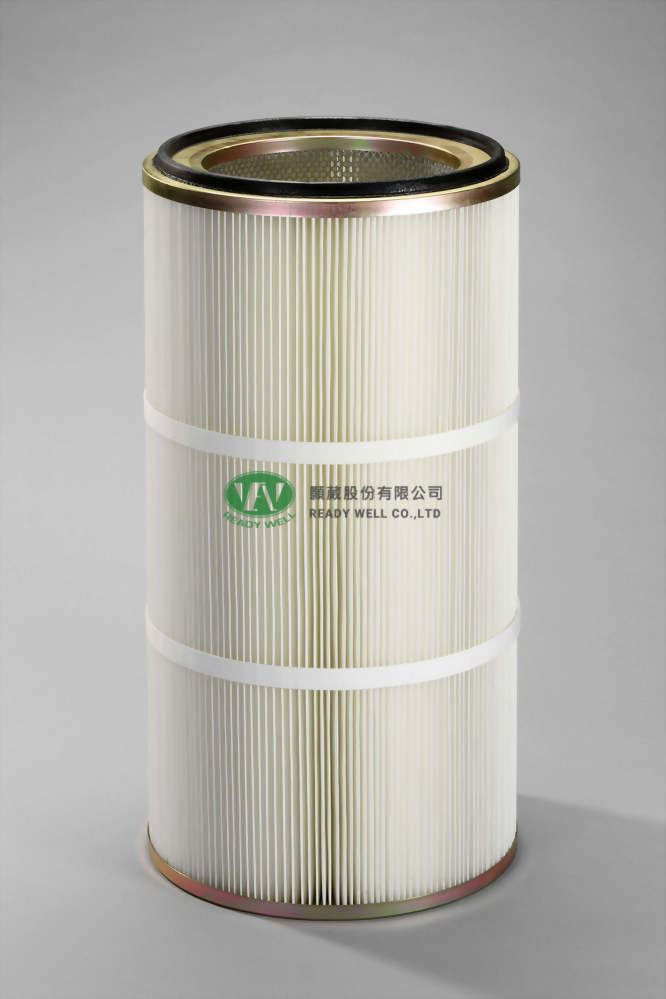

Well-Fib Magazine type filter
|
Filter material specifications |
||||
|
1.Filter material |
100% Spunbond Polyester Media |
|||
|
2.Dust type |
Fibrous and non-fibrous mixed dust, larger particle size and irregular dust |
|||
|
3.Filter material filtration efficiency |
99%@1-2micron |
|||
|
4.Filter size |
Shape |
filter area |
Size |
|
|
Ft2 |
M2 |
|||
|
Horizontal filter |
110 |
10 |
12.75”OD × 8.38” ID × 26”L |
|
|
110 |
10 |
13.80”OD × 9.50” ID × 26”L |
||
|
5.Filter material structure |
Horizontal －The upper and lower end covers are fully open, and the material can be galvanized, stainless steel or plastic. －The opening degree of the inner metal support lining is 77%, and the material can be galvanized, stainless steel or plastic. －Synthetic rubber airtight gasket ring, manufactured in one piece |
|||
|
6.Filter material operating
temperature |
120oC |
|||
|
7.Filter certification |
Passes DIN EN 60335-2-69 test method，L-Class standards after IFA testing |
|||
Features of filter material：
- Exclusive filter material for fibrous dust.
- The wide pleat design can easily filter dust, and use high-pressure air pulses to shake off fibrous, larger particle size and irregular dust.
- The fine fiber gap design provides the best filtration effect.
This kind of filter material specially designed for fibrous dust has a wide range of applications, such as wood industry, agricultural product processing, PCB, BGA, CCL, metal polishing and other processes. The wide pleat design of the filter cloth has a wide range of applications for fibrous and particle size. The filtering effect is good for large and irregular dust and the filter material has a long service life.
