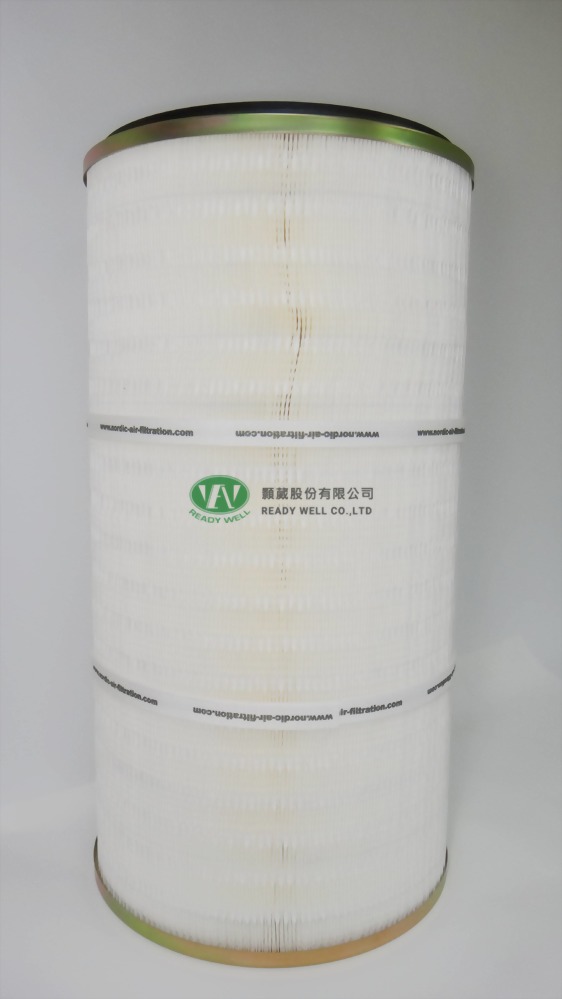

UX-Nano TW-Nano Magazine type filter
|
Filter material specifications |
||||
|
1.Filter material |
ES Nano on Blend Media |
|||
|
2.Dust type |
Ultrafine nanometer dust and irregular dust |
|||
|
3.Filter material filtration efficiency |
99.99%@0.2-2micron |
|||
|
4.Filter size |
Shape |
filter area |
Size |
|
|
Ft2 |
M2 |
|||
|
Horizontal filter |
165 |
15 |
13.80”OD × 9.50” ID × 26”L |
|
|
5.Filter material structure |
Horizontal－The upper and lower end covers are fully open, and the material can be galvanized or stainless steel or plastic material －The opening degree of the inner metal support lining is 77%, and the material can be galvanized or stainless steel or plastic materials －Synthetic rubber airtight gasket ring, manufactured in one piece |
|||
|
6.Filter material operating
temperature |
60oC |
|||
|
7.Filter certification |
Passes DIN EN 60335-2-69 test method，M-Class standards after IFA testing |
|||
Features of filter material：
- The surface of the filter material is coated with nanofibers, which can filter dust with extremely fine particle sizes.
- Exclusive filter material for ultra-fine nanoparticles.
- The wide pleat design can easily filter dust and use high-pressure air pulses to shake off ultra-fine nanometer-sized irregular dust.
This kind of filter material coated with an ultra-fine nanofiber layer has a wide range of applications, such as pharmaceuticals, cosmetics, food processing, various types of fumigation, laser hole burning fumigation, and various ultra-fine nanoparticle size dusts.
