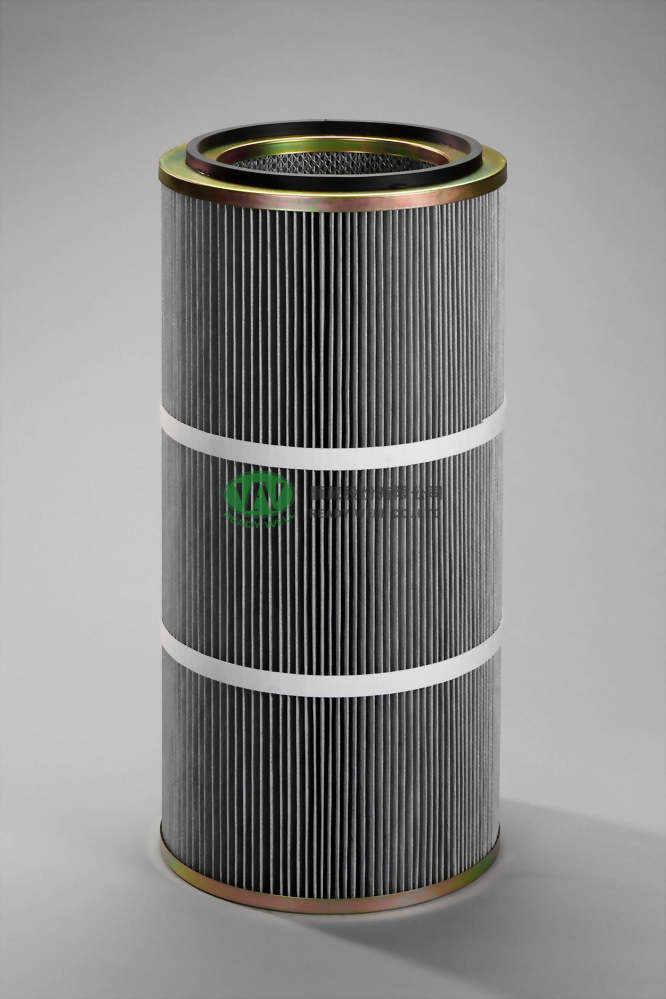

Well-Fib-ALU Magazine type filter

Model : Well-Fib-ALU Magazine type filter

Q'ty :

Specifications
Features

Filter material specifications
1.Filter material	100% Spunbond Polyester Media With P.T.F.E. Coating and Aluminum Coating
2.Dust type	Cohesive, fibrous and non-fibrous mixed dust, hygroscopic and irregular dust, explosive dust
3.Filter material filtration efficiency	99.95%@0.2-2micron
4.Filter size	Shape	filter area		Size
		Ft²	M²
	Horizontal filter	110	10	12.75”OD × 8.38” ID × 26”L
		110	10	13.80”OD × 9.50” ID × 26”L
5.Filter material structure	Horizontal －The upper and lower end covers are fully open, and the material can be galvanized, stainless steel or plastic. －The opening degree of the inner metal support lining is 77%, and the material can be galvanized, stainless steel or plastic. －Synthetic rubber airtight gasket ring, manufactured in one piece
6.Filter material operating temperature	120^oC
7.Filter certification	Under standard conditions, the outside of the filter material should be lower than 5 × 10³Ω
8. Filter certification	Passes DIN EN 60335-2-69 test method，M-Class standards after IFA testing

Features of filter material：

The surface of the filter material is coated on both sides with P.T.F.E. (Teflon and conductive aluminum alloy material)，For hydrophobic filter media.
Exclusive filter material for cohesive, fibrous and hygroscopic dust.
The wide pleat design can easily filter dust and use high-pressure air pulses to shake off irregular dust that is cohesive, fibrous, and hygroscopic.
Can handle hygroscopic dust with moisture content below 5%.
Avoid static electricity storage between dust and filter materials.

This P.T.F.E.-coated filter material has a wide range of applications, such as TFT-LCD CVD, SOLAR CVD, PCB, BGA, CCL, metal processing industry, wood industry, chemicals, concrete, food processing, paper, Pharmaceuticals, welding fume, sand blasting, casting, ore processing, dust that is easy to store electricity and has a high KST value, dust of various particle sizes.
